Overview
Our newest PK Series lineup provides wider uses from small KTV room into middle outdoor mobile avenue. High quality components and state-of-the-art innovation delivers you crytstal output and stabile frequency response from low to high frequency
Features
- Dual bass reflex port for deeper bass performance
- Light construction for faster and easier installation
- Dual lighting for global standard installation
- HPL covered enclosure for longer external durability
- Easy replacement for each components (woofer or tweeter)
[/su_tab]
[su_tab title=”Specification” disabled=”no” anchor=”” url=”” target=”blank”]
[su_table responsive=”Yes”]

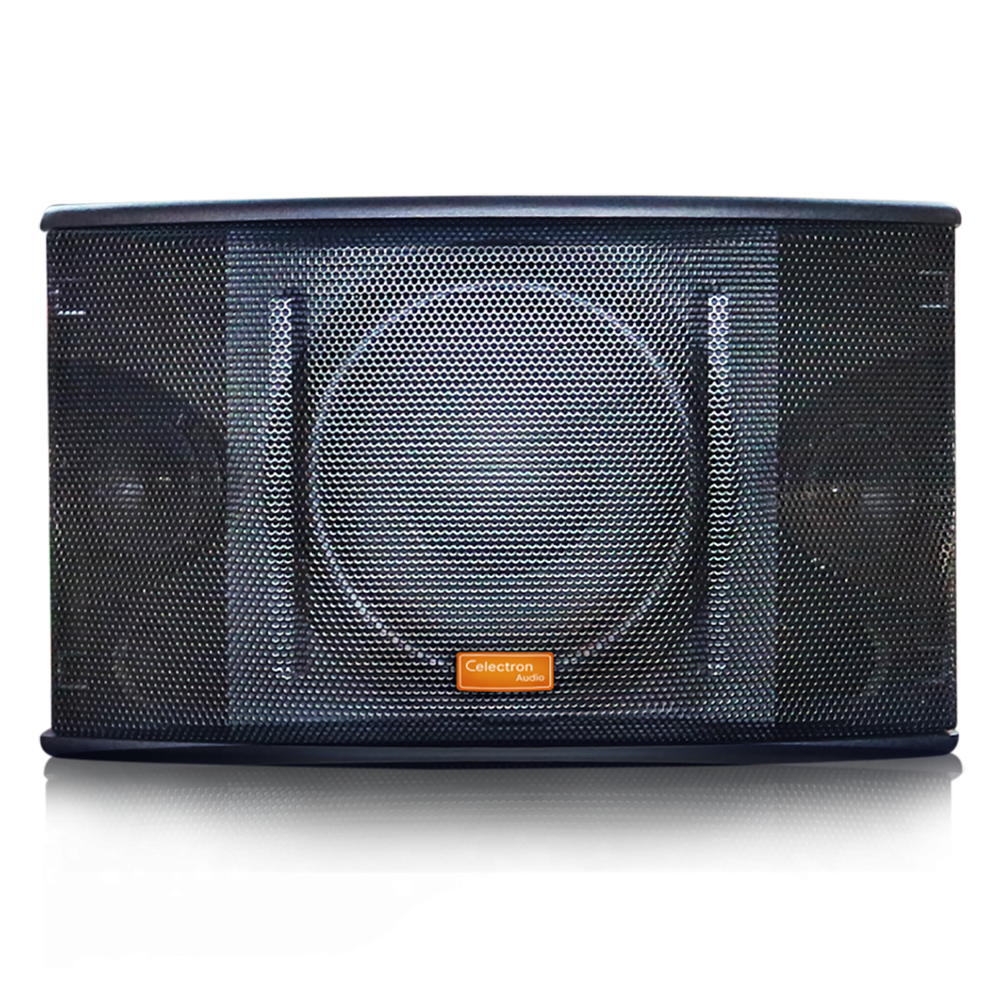

| Model | PK-408 | PK-510 | PK-712 |
|---|---|---|---|
| System Type | 2-Way vented Enclosure | 2-Way vented Enclosure | 2-Way vented Enclosure |
| High Frequency Device | 2 x 3″ Cone Tweeter | 2 x 3″ Cone Tweeter | 2 x 3″ Cone Tweeter |
| Low Frequency Device | 1 x 8″ Vented Woofer | 1 x 10″ Vented Woofer | 1 x 12″ Vented Woofer |
| Total Peak Power | 400 W | 500 W | 700 W |
| Power Ratings | 200 W | 250 W | 350 W |
| Frequency Response | 54Hz (@-3dB) | 46Hz (@-3dB) | 40Hz – 20kHz (@-3dB) |
| Crossover Point | 3000 Hz | 3000 Hz | 3000 Hz |
| Nominal Impedance | 8 Ohm | 8 Ohm | 8 Ohm |
| Input Sensivity | 91dB (@1W/1M) | 94dB (@1W/1M) | 97dB (@1W/1M) |
| Connectors | INPUT, LINK: Neutrik SPEAKON© (NL4MP) | INPUT, LINK: Neutrik SPEAKON© (NL4MP) | INPUT, LINK: Neutrik SPEAKON© (NL4MP) |
| Construction | Plywood | Plywood | Plywood |
| Cabinet Colour | Black | Black | Black |
| Nett Weight | 8 kg (17.64 lbs) | 8.5 kg (18.7 lbs) | 12.5 kg (27.6 lbs) |
| Dimensions (W x H x D) | 450 x 266 x 251 mm | 503 x 293 x 251 mm | 743 x 660 x 410mm |
[/su_table]
[/su_tab]
[su_tab title=”Download” disabled=”no” anchor=”” url=”” target=”blank”]
Document
PK Series Brochure | 580 KB
Download
Images
